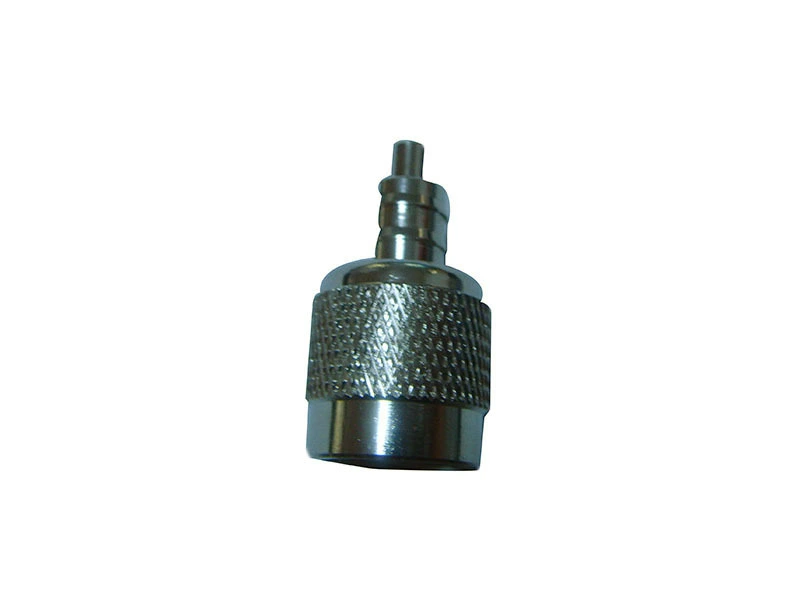

    KLS1-TNC040 TNC CONNECTOR

    1- Center Contact: Brass,Gold-plated
    2- Body-diecast:   Brass,Nickel-plated
    3- Insulation:  PTFE
    4- Electrical

        Impedance: 50 Ω
        Frequency Range:0~11 GHz Max.
        Voltage Rating: 500 volts
        Withstand Voltage:1500V
        Insulation Resistance:5000 MΩ
        V.S.W.R:<1.22
        Contact resistance:
          Centre contact: 1.5 mΩ Max.
          Outer contact:  0.2  mΩ Max.
    5- Mechanical
       Mating: 7/16 threaded coupling
    6- Durability(mating):500(cycles)
