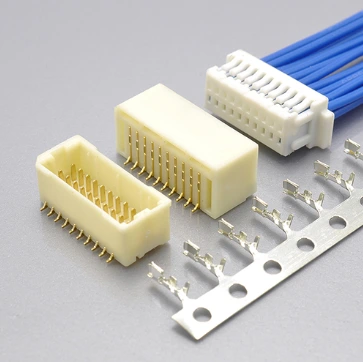

    KLS1-XF1-1.00 Pitch 1.00mm JST SH SHR Type wire to board connector

    Order information:
    KLS1-XF1-1.00-1-02-H
    Pitch:1.00mm

    Pins:1=Single layer 2=Double layer
    Pin numbur:2~40 pins
    H=Hosing / T=Terminal / S=Straight male pin / R= Right angle male pin
    M1=SMT Right Angle Male pin / M2=SMT Straight Male pin

    Electrical Specification:
    Voltage rating:50V AC, DC
    Current rated:1.0A, AC, DC
    Contact resistance:20m Max
    Insulation resistance:100m min
    Withstanding voltage:500V AC/minute
    Applicable wire:AWG #32 to #28
    Temperature range:-25 ~+85 degrees C
    Material:
    Pin:Brass Tin
    Soldering lug:Brass Tin
    Housing:LCP (UL94V-0), Natural
