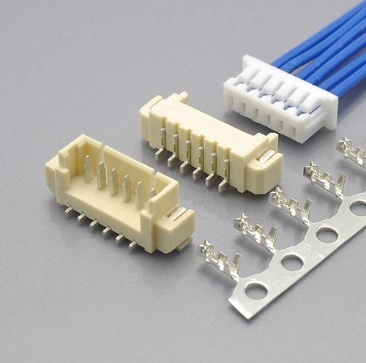

KLS1-XL1-1.25 Pitch 1.25mm Molex 51021 51047 wire to board connector
Electrical Specification:
Rated Voltage: 50/250V AC.DC
Rated Current: 0.7A 2A
Contact Resistance: 0.02 Ohm max
Insulation Resistance: 1000M Ohm min
Withstand voltage: 800V AC/MIN
Temperature range for usage : -25ºC~+85ºC
P.C board thickness : 0.8~1.6mm
Material:
Housing: PA66 (PA66) UL94V-2
Contacts: Brass or Phosphor Bronze
Plating: Tin 50u" over 100u" nickel
Wire range : AWG#32~#22
Straight and Right Male pin Material: brass / tin-plated
