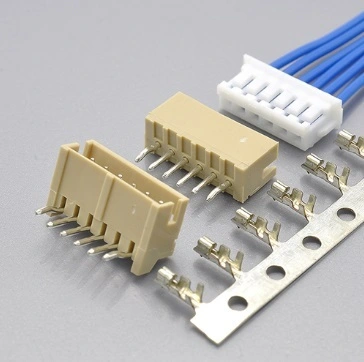

KLS1-XL1-1.50 Pitch 1.50mm JST ZH Type Wire To Board Connector
Electrical Specification:
Rated Voltage: 50/125V AC.DC
Rated Current: 0.7A 1A
Contact Resistance: 0.02 Ohm max
Insulation Resistance: 1000M Ohm min
Withstand voltage: 800V AC/MIN
Temperature range for usage : -25ºC~+85ºC
P.C board thickness : 0.8~1.6mm
Material:
Housing: PA66 (PA66) UL94V-2
Contacts: Brass or Phosphor Bronze
Plating: Tin 50u" over 100u" nickel
Wire range : AWG#32~#22
