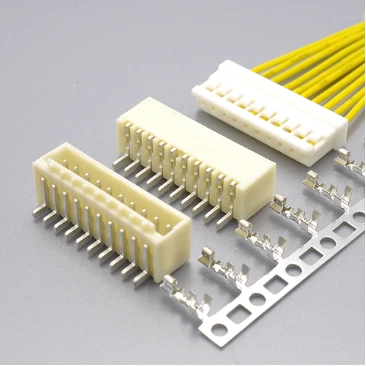

    KLS1-XL2-1.50 Pitch 1.50mm Molex 87439 Type Wire To Board Connector

    Order information:
    KLS1-XL2-1.50-02-H
    Pitch:1.50mm
    pins:2~16
    H=Hosing / T=Terminal M1=SMT Right Angle Male pin / M2=SMT Straight Male pin

    Specifications
    ◆Material: Nylon UL 94V0 (Lead Free)
    ◆Contact : Phosphor Bronze
    ◆Finish : Plated Tin or Gold Flash Lead over Nickel
    ◆Current rating:3A AC,DC
    ◆Voltage rating:250V AC,DC
    ◆Temperature range:-35℃~+85℃
    ◆Insulationresistance:1000MΩ/Min.
    ◆Withstanding voltage:500V AC/minute
    ◆Contact resistance:20mΩ/Max.
