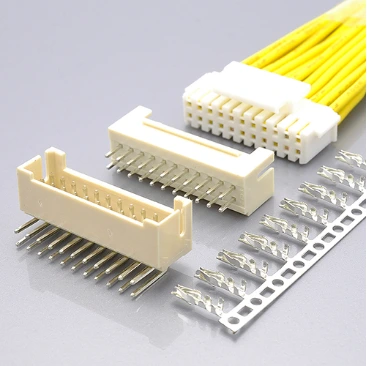

KLS1-XL4-2.00 Pitch 2.00mm Double With Lock type Wire to Board Connector
Order information:
KLS1-XL4-2.00-2X01-H
Pitch:2.00mm
Pins:2=Double layer
Pin numbur:2~60 pins
H=Hosing / T=Terminal / S=Straight male pin / R= Right angle male pin
Specifications
◆Material: Nylon UL 94V0 (Lead Free)
◆Contact : Phosphor Bronze
◆Finish : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:2A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:1000MΩ/Min.
◆Withstanding voltage:800V AC/minute
◆Contact resistance:20mΩ/Max.
