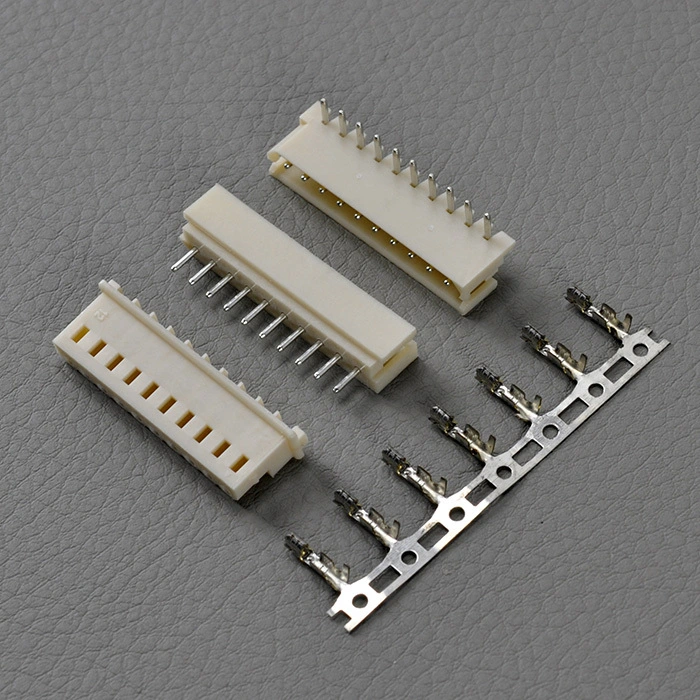

    KLS1-XL4-2.50 Pitch 2.50mm Molex 5264 type Wire to Board Connector

    KLS1-XL4-2.50 Pitch 2.50mm Molex 5264 type Wire to Board Connector 2


    Electrical Specification:
    Rated Voltage:    250V AV.DC
    Rated Current:    3A
    Contact Resistance:  0.02Ω  max
    Insulation Resistance:   1000MΩ min
    Withstand voltage:  1000V AC/min
    Temperature range for usage  : -25ºC~+85ºC
    P.C board thickness  : 0.8~1.6mm
    Material:
    Housing: PA66 (PA66) UL94V-0
    Contacts: Phosphor Bronze or Brass
    Plating: Tin 50u" over 100u" nickel
    Wire range  : AWG#30~#22
