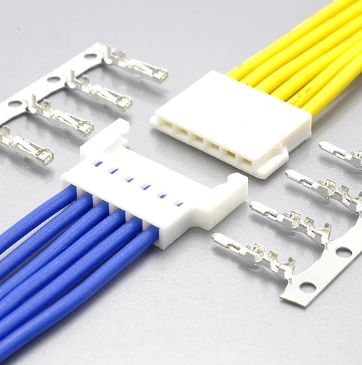

    KLS1-XL7-2.00 Pitch 2.00mm Molex 51006 type wire to wire connector

    Order information:
    KLS1-XL7-2.00-02-MH
    Pitch:2.00mm
    pins:2~10
    MH=Male Hosing / FH=Female Hosing / MT=Male Terminal / FT=Female Terminal

    Specifications
    ◆Material: Nylon UL 94V0 (Lead Free)
    ◆Contact : Phosphor Bronze
    ◆Finish : Plated Tin or Gold Flash Lead over Nickel
    ◆Current rating:2A AC,DC
    ◆Voltage rating:125V AC,DC
    ◆Temperature range:-35℃~+85℃
    ◆Insulationresistance:1000MΩ/Min.
    ◆Withstanding voltage:500V AC/minute
    ◆Contact resistance:20mΩ/Max.
