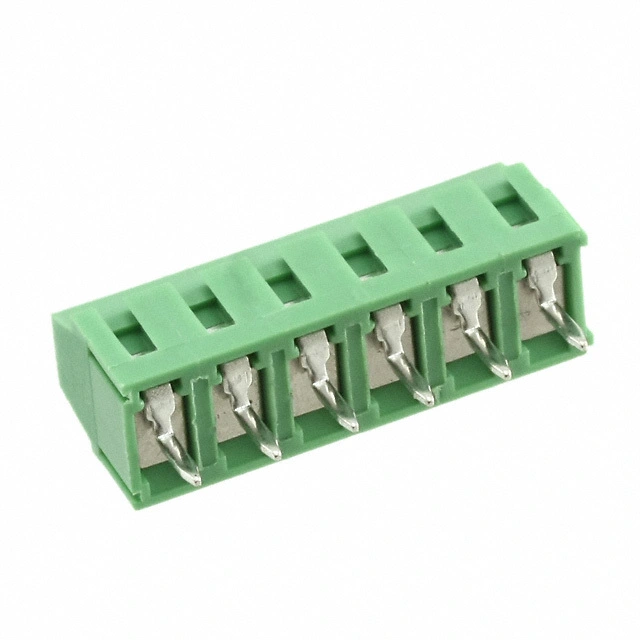

KLS2-125-3.50 3.81 Screw CONN TERM Block 3.50 3.81mm
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS2-125-3.50 3.81
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS2-125-3.50 3.81 Screw CONN TERM Block 3.50 3.81mm
Electrical :
Rated voltage: 300V
Rated current: 10A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding Voltage: AC1500V/1Min
Wire range: 26-16AWG 1.0mm²
Material
Screws: M2 steel Zinc plated
Contact: Brass,Nickel Plated
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 0.2Nm (1.77lb.in)
Strip length: 5-6mm
