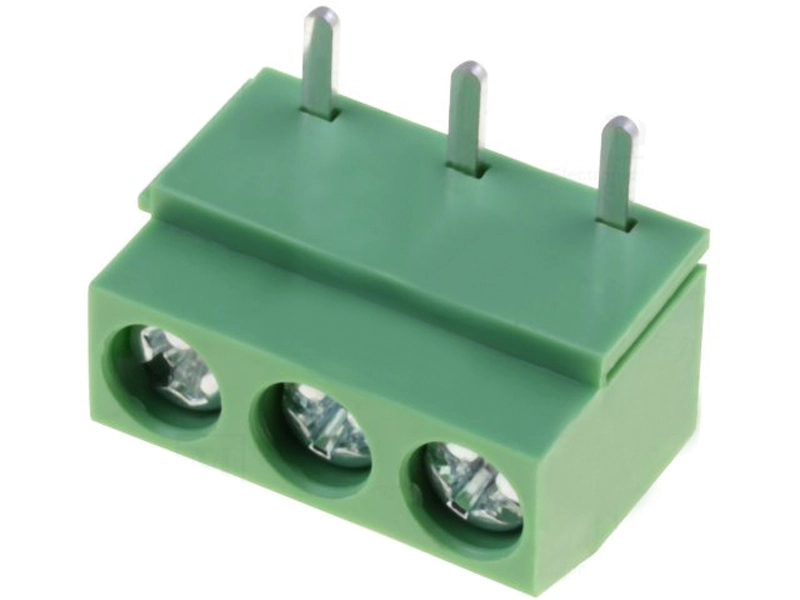

KLS2-126R-5.00 PCB Terminal block 5.0mm Pitch
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS2-126R-5.00
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS2-126R-5.00 PCB Terminal block 5.0mm Pitch
Material
Screw: M2.5, Steel,Zn plated
Shrapnel: Stainless steel, Nickel plated
Pin header: Brass or Steel, Tin plated
Housing: PA66 , UL94V-0
Electrical
Rated voltage: 300V
Rated current: 8A
Wire range: 26~14AWG 2.5mm²
Contact Resistance: 20 m Ω
Insulation resistance: 500MΩ/DC500V
Withstand voltage: AC2000V / 1 min
Mechanical
Temp. Range: -40 ° C ~ + 105 ° C
Soldering: 250° C±5° C for 5S
Torque: 0.4 N.m (3.54Lb. in)
Strip length: 6~7 mm
