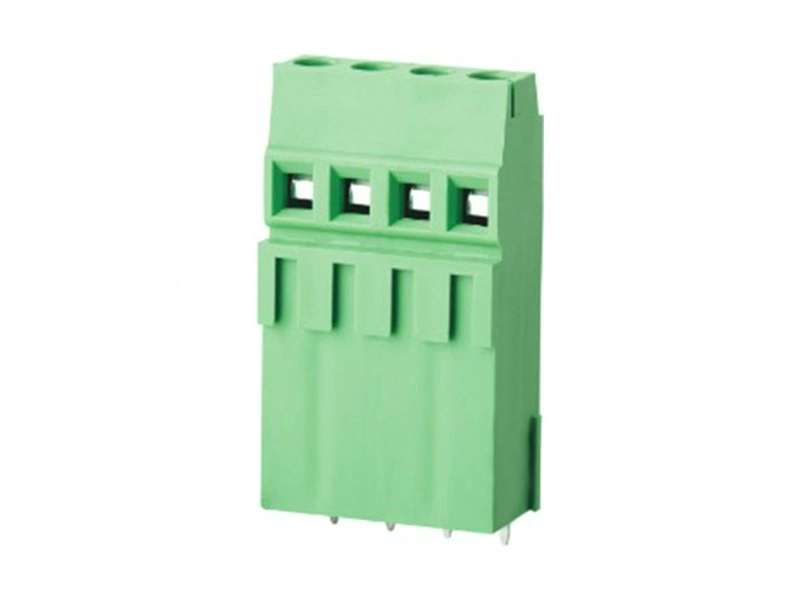

KLS2-128HH-5.00&5.08 CONN TERM BLK VERT 5.00mm PCB
Electrical
Rated voltage:300V
Rated current:15A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range:30-14AWG2.5mm²
Material
Screws: M2.5steel Zinc plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque:0.4Nm (10.6lb.in)
Strip length:6~7mm
