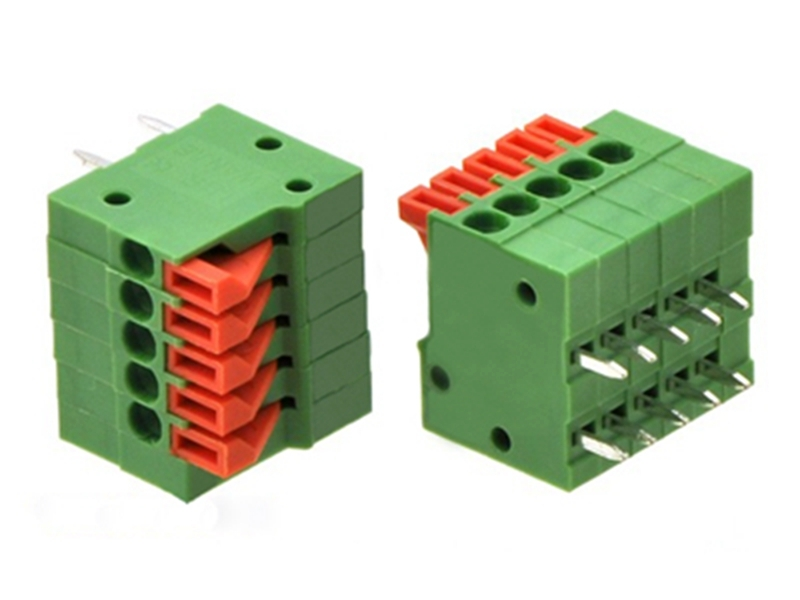

KLS2-141R-2.54 Spring Clamp Terminal Block 2.54mm pitch
Material Electrical Mechanical
Shrapnel: Stainless steel
Pin header: Brass , Tin plated
Housing: PA66 , UL94V-0
Rated voltage: 150V
Rated current: 2A
Wire range: 26~18AWG 1.0mm²
Contact Resistance: 20 m Ω
Insulation resistance: 500MΩ/DC500V
Withstand voltage: AC1300V / 1 min
Temp. Range: -40 ° C ~ + 105 ° C
Soldering: 250° C±5° C for 5S
Strip length: 9~10mm
