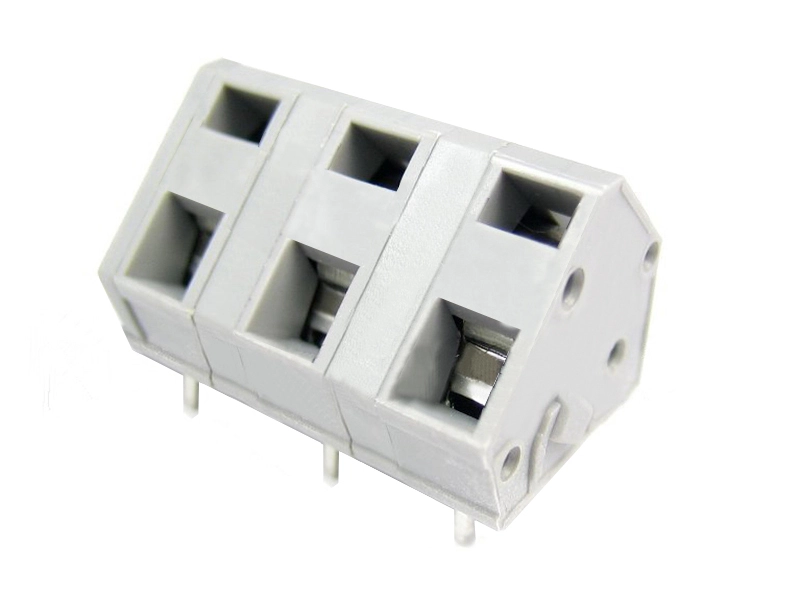

KLS2-206-7.50 Spring Clamp Terminal Block 7.50mm pitch
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS2-206-7.50
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS2-206-7.50 Spring Clamp Terminal Block 7.50mm pitch
Electrical :
Rated voltage: 300V
Rated current: 10A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC2000V/1Min
Wire range: 26-14AWG 1.5MM²
Material
Housing:PA66，UL94V-0
Wire guard: Stainless steel
Pin header: Brass, Tin plated
Mechanical
Temp. Range: -40ºC~+105ºC
Strip length:5-6mm
