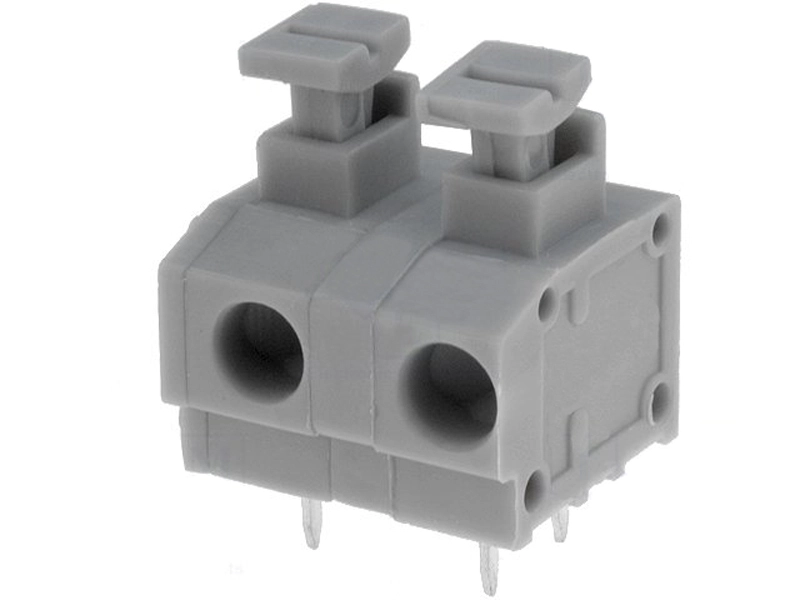

KLS2-235R-7.50 Spring Clamp Terminal Block 7.50mm pitch
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS2-235R-7.50
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS2-235R-7.50 Spring Clamp Terminal Block 7.50mm pitch
Material
Housing: PA66 , UL94V-0
Pin header: Brass, Tin plated
Wire guard: Stainless steel
Electrical
Rated voltage: 300V
Rated current: 5A
Wire range: 22~18AWG 1.0mm²
Contact Resistance: 20 m Ω
Insulation resistance: 500MΩ/DC500V
Withstand voltage: AC2000V / 1 min
Mechanical
Temp. Range: -40 ° C ~ + 105 ° C
Soldering: 250° C±5° C for 5S
Strip length: 9~10mm
