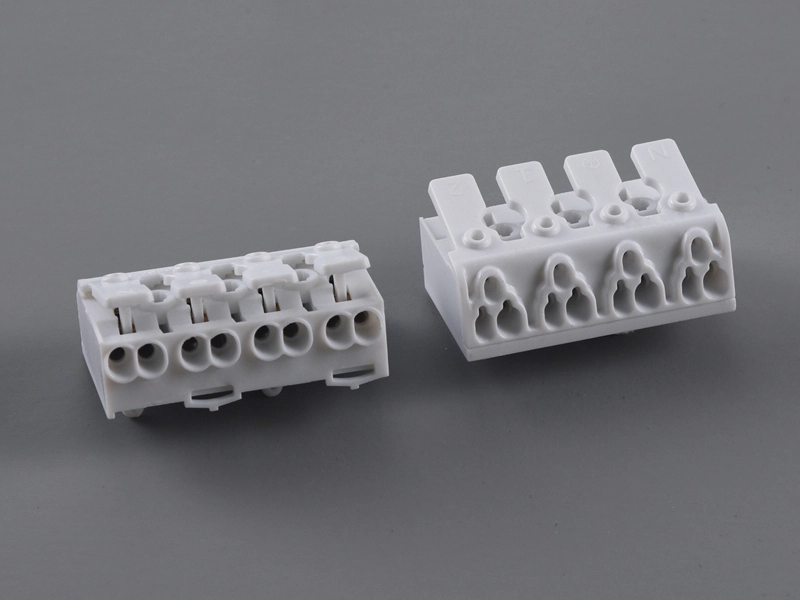

KLS2-238K-04P PUSH wire Connector 2.5mm² 4 poles
Electrical : Rated Voltage: 450V(IEC/EN)/300V(UL) Rated Current: 16A Contact resistance: 20 mΩ Insulation resistance: 5000MΩ/DC1000V Withstanding voltage : AC2500V/1 min Cross Section: Solid conductor & Stranded conductor A holes: 0.5-2.5mm²/14-20AWG B holes: 0.5-1.5mm²/16-20AWG C holes: 0.5-2.5mm²/14-20AWG Materials Insulation Materials: PA 66,WHITE,UL94V-2 Contact: Copper,Nickel Plated Wire guard : Stainless steel Number of poles: 4 poles Strip length : 8-10mm Operating Temperature: -40°C~+105°C |
