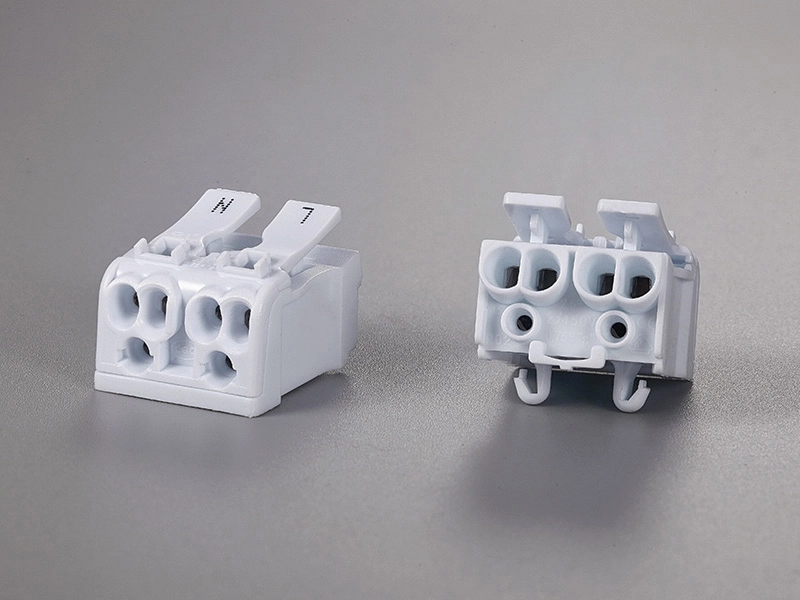

KLS2-238L-02P PUSH wire Connector 2.5mm² 2poles
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS2-238L-02P
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS2-238L-02P PUSH wire Connector 2.5mm² 2poles
Electrical :
Rated Voltage: 450V(IEC/EN)/300V(UL)
Rated Current: 16A
Contact resistance: 20 mΩ
Insulation resistance: 5000MΩ/DC1000V
Withstanding voltage : AC2500V/1 min
Cross Section: Solid conductor & Stranded conductor
A holes: 0.5-2.5mm²/14-20AWG
B holes: 0.5-1.5mm²/16-20AWG
C holes: 0.5-2.5mm²/14-20AWG
Materials
Insulation Materials: PA 66,WHITE,UL94V-2
Contact: Copper,Nickel Plated
Wire guard : Stainless steel
Number of poles: 2 poles
Strip length : 8-10mm
Operating Temperature: -40°C~+105°C
