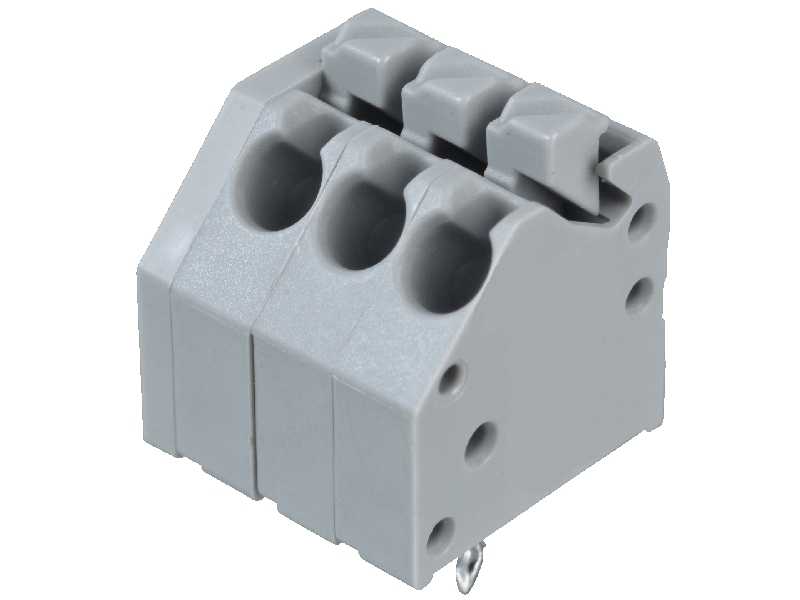

    KLS2-3.50V-5.00 Spring Clamp Terminal Block 3.50mm pitch C & D type


    Electrical:
    Rated voltage: 300V
    Rated current: 7A
    Contact resistance: 20mΩ
    Insulation resistance: 500MΩ/500V
    Withstanding Voltage: AC2000V/1Min
    Wire range: 26~16AWG  1.0MM²

    Material:
    Pin header: Phosphor bronze,Tin plated
    Housing: PA66, UL94V-0

    Mechanical:
    Temp. Range: -40ºC~+105ºC
    MAX Soldering: +250ºC for 5 Sec.
    Strip length: 9~10mm
