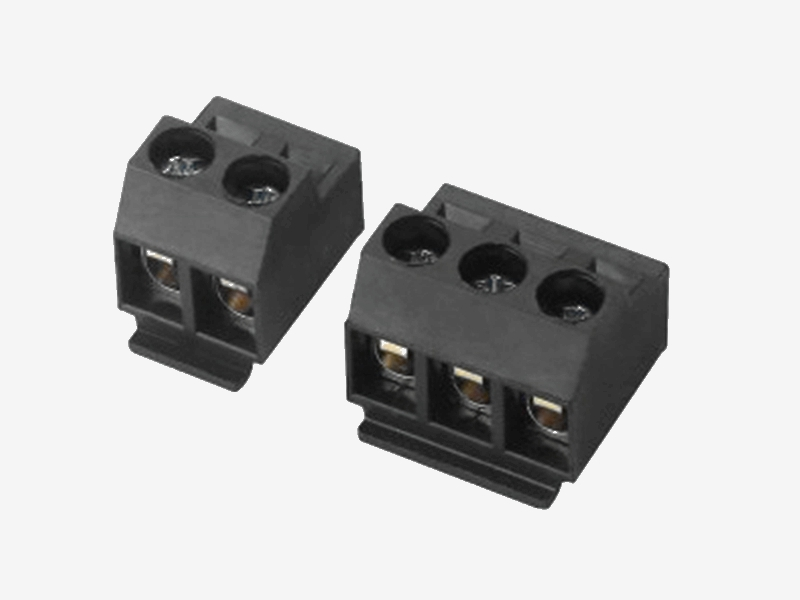

KLS2-331KB-5.00 PCB Terminal block 5.00mm Pitch
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS2-331KB-5.00
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS2-331KB-5.00 PCB Terminal block 5.00mm Pitch
Electrical :
Rated voltage: 250V
Rated current: 10A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding Voltage: AC1500V/1Min
Wire range: 22-14AWG 1.5mm²
Material
Screws: M2.5 steel Zinc plated
Wire guard: phosphor bronze Ni plated or stainless steel
Housing: polyamide glass filled ,UL94V-0
Mechanical
Temp. Range: -30ºC~+105ºC
Torque: 0.4Nm (3.6lb.in)
Strip length: 6.0mm
