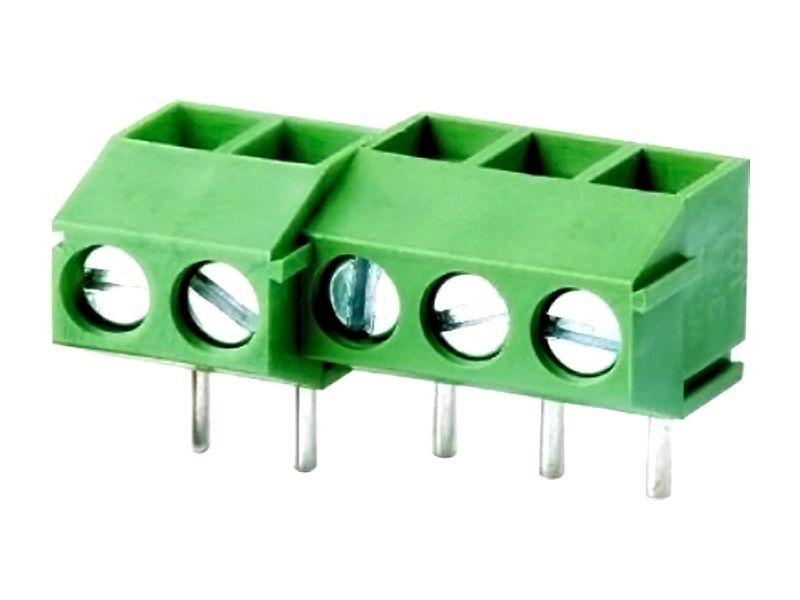

KLS2-350R-3.50&3.96 PCB Terminal block 3.50mm&3.96mm Pitch
Material
Screw: M2, Steel,Zn plated
Shrapnel: Phosphor bronze, Nickel plated
Pin header: Brass, Tin plated
Housing: PA66 , UL94V-0
Electrical
Rated voltage: 125V
Rated current: 10A
Wire range: 24~18AWG 1.0mm²
Contact Resistance: 20 m Ω
Insulation resistance: 500MΩ/DC500V
Withstand voltage: AC2000V / 1 min
Mechanical
Temp. Range: -40 ° C ~ + 105 ° C
Soldering: 250° C±5° C for 5S
Torque: 0.2 N.m (1.77Lb. in)
Strip length: 4.5~5 mm
