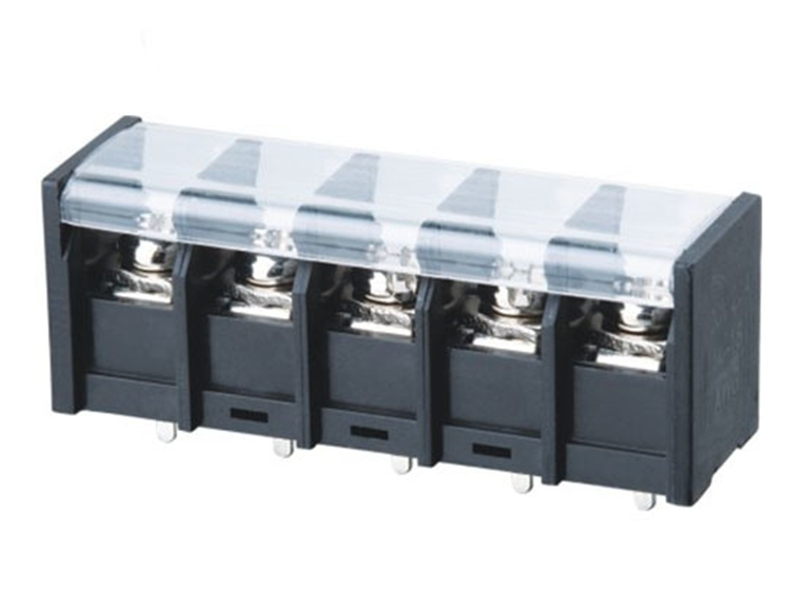

    KLS2-48A-11.0 Pitch 11.0mm without Mount Hole Barrier Terminal Blocks


    Electrical
    Voltage rating : 300V
    Current rating : 20A
    Contact Resistance:    20m
    Ω
    Insulation Resistance: 500MΩ/DC500V
    Withstanding Voltage:  AC2000V/Min

    Wire range:     12-22AWG     4.0mm2
    Operation temperature : -40ºC to+105ºC
    Torque : 12.24kgf-cm/10.6Lbin

    MATERIAL
    Housing:  PA66 UL94V-0
    Terminal:  Brass,Tin plated
    Screws:   M4 Steel Nickel Plated
