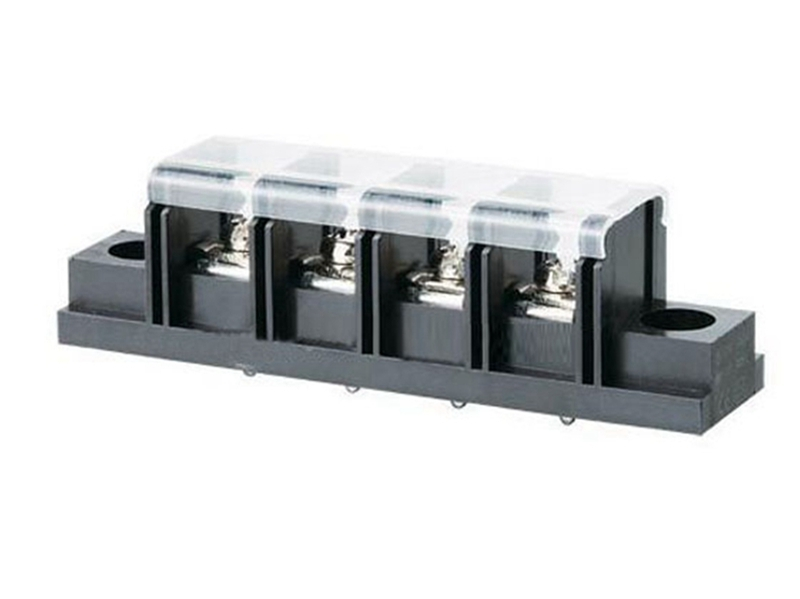

KLS2-48B-13.0 Pitch 13.0mm with Mount Hole Barrier Terminal Blocks
Electrical
Voltage rating : 600V
Current rating : 40A
Contact Resistance: 20mΩ
Insulation Resistance: 500MΩ/DC500V
Withstanding Voltage: AC2000V/Min
Wire range: 18-10AWG 6.0mm2
Operation temperature : -40ºC to+105ºC
Torque : 12.24kgf-cm/10.6Lbin
MATERIAL
Housing: PA66 UL94V-0
Terminal: Brass,Tin plated
Screws: M4 Steel Nickel Plated
