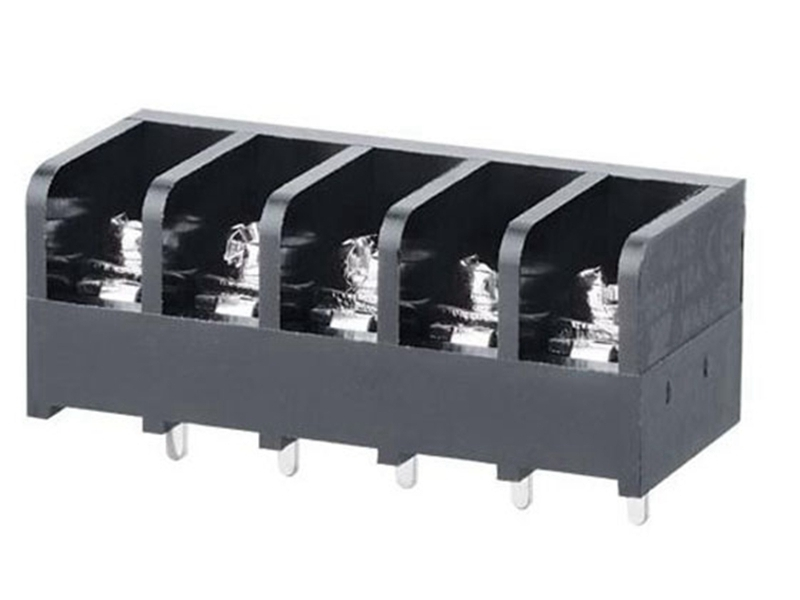

KLS2-56B-7.62 Pitch 7.62mm Barrier Terminal Blocks
Electrical
Voltage rating : 300V
Current rating : 10A
Contact Resistance: 20mΩ
Insulation Resistance: 500MΩ/DC500V
Withstanding Voltage: AC2000V/Min
Wire range: 22-12AWG 2.5mm2
Operation temperature : -40ºC to+105ºC
Torque : 5.1kgf-cm/4.43Lbin
MATERIAL
Housing: PA66 UL94V-0
Terminal: Brass,Tin plated
Screws: M3.0 Steel Nickel Plated
