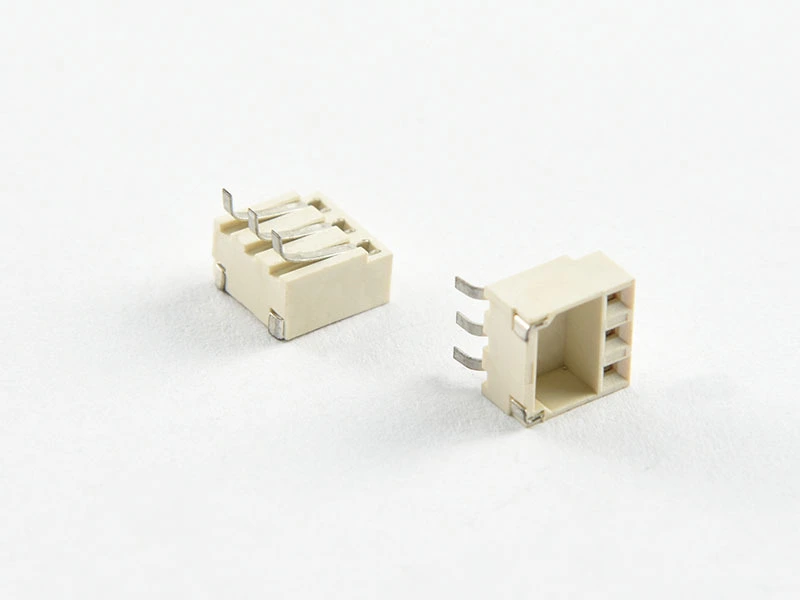

    KLS2-L40 Board to Board Link for T8 LED Lighting

    MATERIAL
    Insulator:LCP,UL94V-0,Beige
    Female Contacts:Phosphor Bronze,Tin-plated
    Male Contacts:Brass,Tin-plated
    Solder Tab:Brass,Tin-plated

    Main Specifications
    Poles:02-04P
    Contact Resistance:≤20mΩ
    Insulation Resistance:≥1000MΩ
    Rated Voltage:125V AC DC
    Rated Current:1.0A AC DC
    Withstanding Voltage:1000V AC/minute
    Temperature Range:   -25 ° C ~ + 105° C
