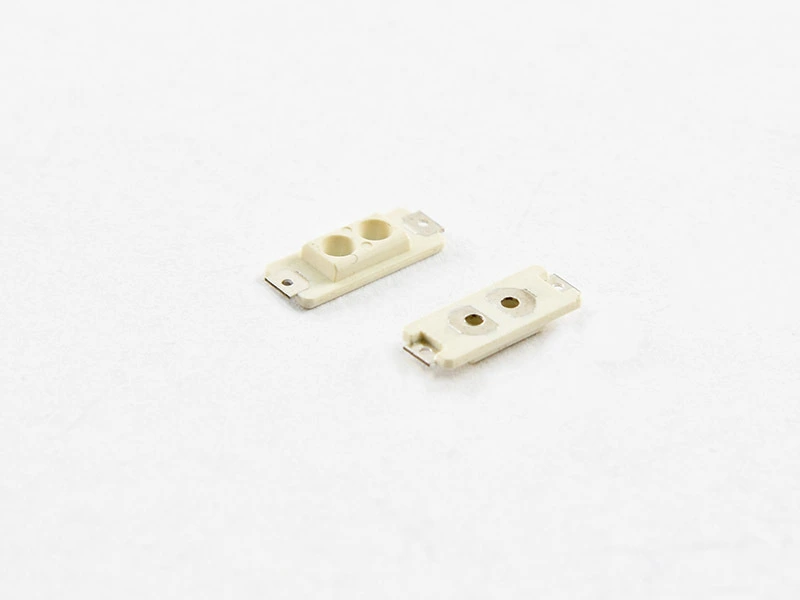

KLS2-L58 Board to Board Link for LED Bulb Pitch 2.5mm
MATERIAL
Insulator:LCP,UL94V-0,Beige
Contacts:Phosphor Bronze,Tin-plated
Main Specifications
Poles:02P
Contact Resistance:≤20mΩ
Insulation Resistance:≥1000MΩ
Rated Voltage:125V AC DC
Rated Current:1.0A AC DC
Withstanding Voltage:1500V AC/minute
Temperature Range: -40 ° C ~ + 120° C
