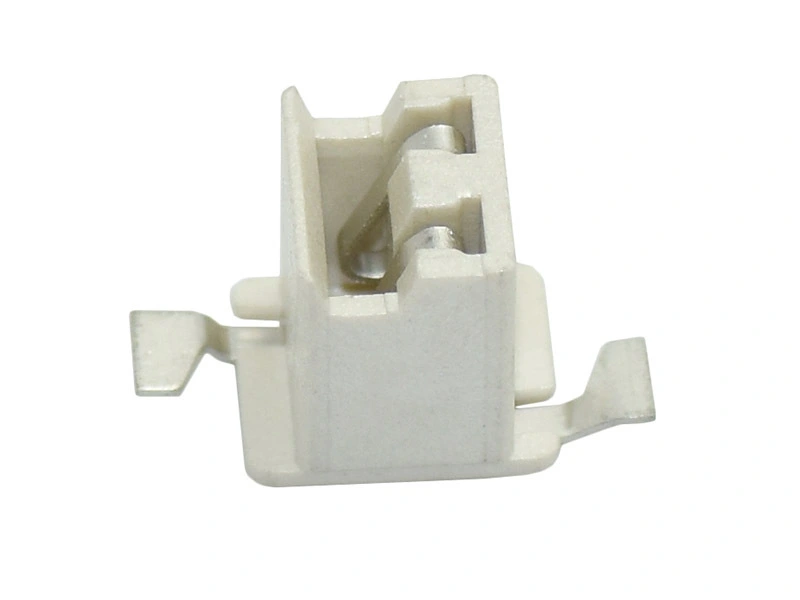

KLS2-L69 EDGE Connector for LED Lighting pitch 2.5mm
MATERIAL Insulator:LCP,UL94V-0,Beige Contacts:Phosphor Bronze,Tin-plated Main Specifications Thickness:1.0mm to 1.2mm Contact Resistance:≤20mΩ Insulation Resistance:≥1000MΩ Rated Voltag250V AC DC Rated Current:1.0A AC DC Withstanding Voltage:1000V AC/minute Temperature Range: -40 ° C ~ + 120° C |
