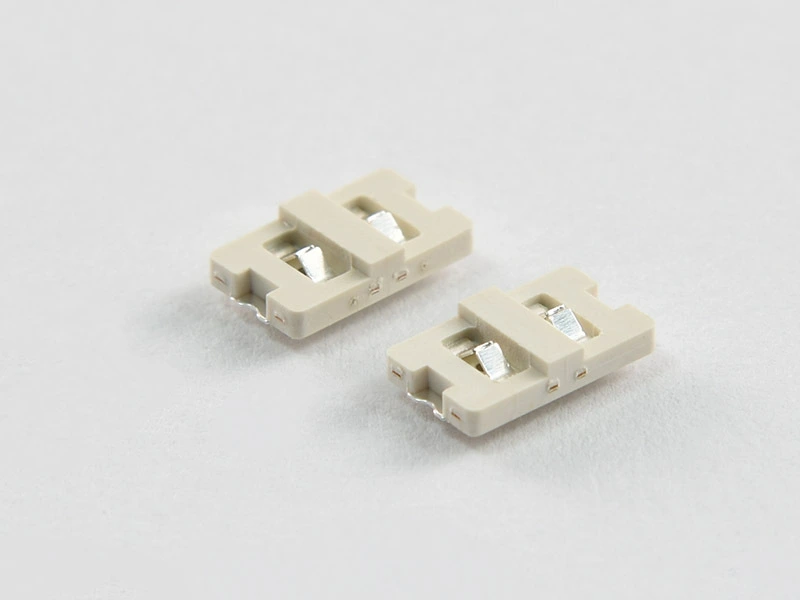

KLS2-L91 Board to Board Link for LED Lighting Pitch 4.0mm
MATERIAL
Insulator:LCP,UL94V-0,Beige
Contact:Phosphor Bronze,Sn-plated
Main Specifications
Contact Resistance:≤20mΩ
Insulation Resistance:≥1000MΩ
Rated Voltage:125V AC DC
Rated Current:1.0A AC DC
Withstanding Voltage:1000V AC/minute
Temperature Range: -40 ° C ~ + 120° C
