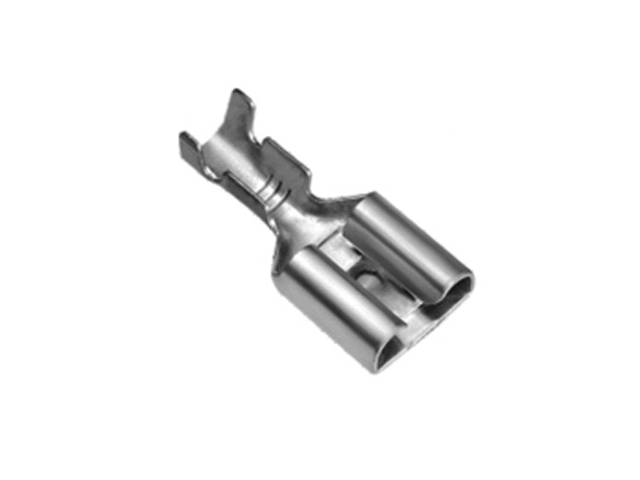

KLS8 EFE01 312 Type Straight Female TAB=0.50 0.80mm 14 16AWG
P/N | Material | Plating | Dimension(mm) | Wire Range | Q'TY | REMARKS | |||||||
W | W1 | E | E1 | L | L1 | T | (AWG) | REEL | |||||
L-KLS8-EFE01-3120500 | Brass | Tin | 9.00 | 8.2 | 19.4 | 0.40 | 14~16 | 5000 | TAB=0.50mm | ||||
L-KLS8-EFE01-3120800 | Brass | Tin | 8.90 | 8.3 | 19.4 | 0.40 | 14~16 | 5000 | TAB=0.80mm |
