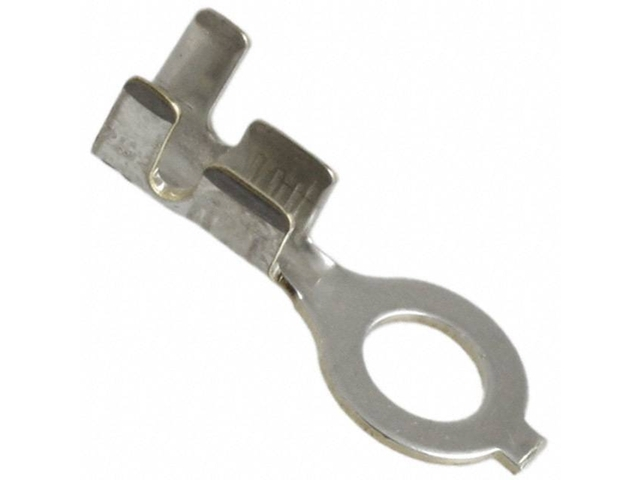

KLS8-RRD Ring Non-insulated terminals
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS8-RRD
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS8-RRD Ring Non-insulated terminals
| P/N | Material | Plating | Dimension(mm) | Wire Range | Q'TY | REMARKS | ||||||||
| D | W | E | L | T | H1 | WS | H2 | IS | (AWG) | REEL | ||||
| L-KLS8-RRD200501 | Brass | Tin | 2.00 | 7.7 | 9.8 | 18.3 | 0.50 | 3.20 | 3.30 | 4.30 | 4.50 | 18~20 | 5000 | |
| L-KLS8-RRD250301 | Brass | Tin | 2.50 | 4.5 | 9.3 | 0.25 | 1.90 | 2.00 | 2.40 | 2.50 | 22~24 | 25000 | ||
| L-KLS8-RRD250402 | Brass | Tin | 2.50 | 5.0 | 5.5 | 10.5 | 0.40 | 2.05 | 2.40 | 2.85 | 3.20 | 20~22 | 25000 | |
| L-KLS8-RRD250403 | Brass | Tin | 2.50 | 5.0 | 12.0 | 0.40 | 3.00 | 3.20 | 4.30 | 4.60 | 16~20 | 15000 | ||
| L-KLS8-RRD320401 | Brass | Tin | 3.20 | 5.0 | 5.5 | 10.5 | 0.40 | 2.05 | 2.40 | 2.85 | 3.20 | 20~24 | 25000 | |
| L-KLS8-RRD320402 | Brass | Tin | 3.20 | 5.0 | 5.4 | 10.0 | 0.40 | 2.85 | 3.00 | 4.30 | 4.60 | 18~20 | 15000 | |
| L-KLS8-RRD320403 | Brass | Tin | 3.20 | 6.0 | 6.3 | 10.5 | 0.40 | 2.90 | 3.20 | 4.20 | 4.60 | 16~18 | 15000 | |
| L-KLS8-RRD320304 | Brass | Tin | 3.20 | 6.4 | 10.0 | 15.2 | 0.30 | 2.30 | 2.80 | 3.60 | 3.70 | 18~22 | 7500 | |
| L-KLS8-RRD320405 | Brass | Tin | 3.20 | 7.0 | 8.7 | 16.0 | 0.40 | 3.30 | 3.50 | 4.60 | 4.80 | 16~20 | 7500 | |
| L-KLS8-RRD320506 | Brass | Tin | 3.20 | 7.0 | 10.0 | 17.5 | 0.50 | 4.40 | 4.70 | 5.70 | 6.30 | 12~14 | 5000 | |
| L-KLS8-RRD370401 | Brass | Tin | 3.70 | 6.0 | 6.7 | 12.4 | 0.40 | 3.00 | 3.20 | 4.30 | 4.60 | 16~18 | 15000 | |
| L-KLS8-RRD370402 | Brass | Tin | 3.70 | 8.0 | 11.0 | 19.0 | 0.40 | 3.30 | 3.60 | 5.00 | 5.20 | 16~18 | 5000 | |
| L-KLS8-RRD370403 | Brass | Tin | 3.70 | 6.5 | 7.0 | 11.6 | 0.40 | 2.90 | 3.20 | 4.70 | 4.70 | 16~20 | 15000 | |
| L-KLS8-RRD370404 | Brass | Tin | 3.70 | 7.0 | 8.7 | 16.0 | 0.40 | 3.30 | 3.50 | 4.60 | 4.80 | 16~20 | 7500 | |
| L-KLS8-RRD420401 | Brass | Tin | 4.20 | 6.0 | 7.0 | 12.5 | 0.40 | 2.00 | 2.40 | 2.80 | 3.30 | 22~26 | 15000 | |
| L-KLS8-RRD420402 | Brass | Tin | 4.20 | 6.0 | 6.7 | 12.4 | 0.40 | 3.00 | 3.20 | 4.30 | 4.60 | 16~18 | 15000 | |
| L-KLS8-RRD420503 | Brass | Tin | 4.20 | 7.0 | 8.7 | 16.0 | 0.50 | 3.30 | 3.50 | 4.60 | 4.80 | 16~20 | 7500 | |
| L-KLS8-RRD420504 | Brass | Tin | 4.20 | 7.0 | 8.7 | 16.0 | 0.50 | 4.10 | 4.10 | 5.00 | 7.30 | 16+16 | 7500 | |
| L-KLS8-RRD420505 | Brass | Tin | 4.20 | 8.0 | 11.0 | 19.0 | 0.50 | 3.40 | 3.50 | 5.10 | 5.30 | 16~20 | 5000 | |
| L-KLS8-RRD530804 | Brass | Tin | 5.30 | 10.0 | 13.0 | 22.0 | 0.80 | 7.90 | 6.00 | 5.80 | 8.30 | 10~12 | 3000 | |
| L-KLS8-RRD530503 | Brass | Tin | 5.30 | 10.0 | 13.0 | 22.0 | 0.50 | 3.60 | 4.20 | 5.20 | 5.50 | 16~20 | 3000 | |
| L-KLS8-RRD530502 | Brass | Tin | 5.30 | 8.4 | 11.0 | 19.0 | 0.50 | 4.30 | 4.30 | 6.20 | 6.80 | 14~16 | 5000 | |
| L-KLS8-RRD530501 | Brass | Tin | 5.30 | 8.0 | 11.0 | 19.0 | 0.50 | 3.30 | 3.60 | 5.00 | 5.20 | 16~20 | 5000 | |
| L-KLS8-RRD640802 | Brass | Tin | 6.40 | 12.0 | 13.0 | 22.0 | 0.80 | 7.90 | 6.00 | 5.80 | 8.30 | 10~12 | 3000 | |
| L-KLS8-RRD640501 | Brass | Tin | 6.40 | 10.0 | 13.0 | 22.0 | 0.50 | 3.60 | 4.20 | 5.20 | 5.50 | 16~20 | 3000 | |
| L-KLS8-RRD840501 | Brass | Tin | 8.40 | 12.0 | 14.0 | 23.0 | 0.50 | 3.60 | 4.20 | 5.20 | 5.50 | 14~18 | 3000 | |
| L-KLS8-RRD950801 | Brass | Tin | 9.50 | 16.0 | 20.0 | 28.0 | 0.80 | 3.50 | 4.00 | 5.30 | 5.60 | 16~18 | 2500 | |
| L-KLS8-RRD110501 | Brass | Tin | 11.0 | 16.0 | 20.0 | 28.0 | 0.50 | 3.40 | 3.50 | 5.20 | 5.10 | 16~18 | 2500 | |
| L-KLS8-RRD130501 | Brass | Tin | 13.0 | 16.0 | 20.0 | 28.0 | 0.50 | 3.40 | 3.50 | 5.20 | 5.10 | 16~18 | 2500 | |
