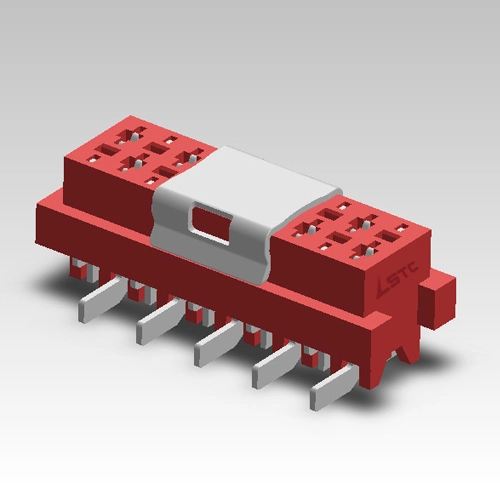

KLS1-204G 2.54mm Micro Match Connector Female SMT Type
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-204G
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Micro Match Connector Female SMD Type
Order Information:
KLS1-204G-XX-R
XX-No.of 04~26pin
R-Red
Material:
Housing: PA9T UL94V-0
Contacts: Phosphor Bronze
Electrical Characteristics:
Current Rating: 1 AMP
Insulator Resistance: 1000M Ohm min. at DC 250V
Contact Resistance: 20m Ohm max. at DC 100mA
Operating Temperature: -45ºC~+105ºC
