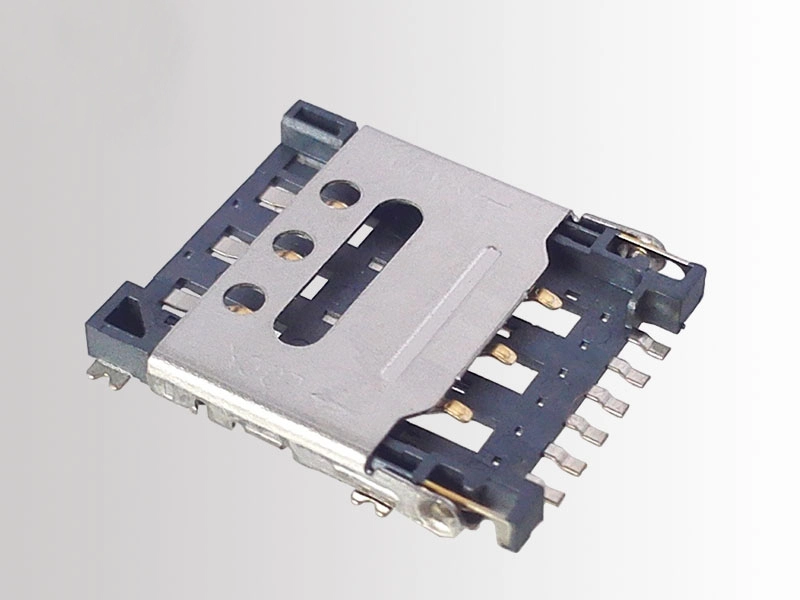

    Nano SIM Card Connector 1.27mm Pitch 6 Pin H1.4mm KLS1-SIM-077

    Material:
    Housing Material: LCP UL94V-0
    Contact Material: Tin-Bronze
    Package: Tape and Reel Package
    Electrical Characteristics:
    Voltage rating: 5VDC Max
    Current Rating: 0.5A Max
    Withstand voltage: 500V AC/1Minute
    Insulation resistance: ≥1000ΜΩ
    Contact resistance: ≤100MΩ
    Life: >10000 Cycles
    Operating Temperature: -40ºC~+85ºC
