KLS1-SIM-104 1.27mm Pitch 6 Pin H1.5mm With CD pin Nano SIM Card Connector
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-SIM-104
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

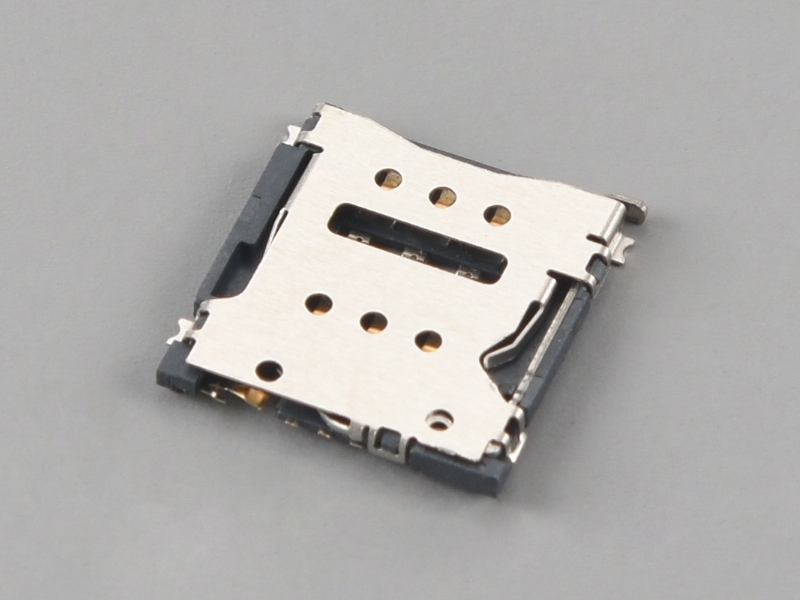

Nano SIM Card Connector 1.27mm Pitch 6 Pin H1.5mm With CD pin KLS1-SIM-104
Material:
Housing Material: LCP UL94V-0
Contact Material: Tin-Bronze
Package: Tape and Reel Package
Electrical Characteristics:
Voltage rating: 30VDC Max
Current Rating: 1.0A Max
Withstand voltage: 500V AC/1Minute
Insulation resistance: ≥1000ΜΩ
Contact resistance: ≤100MΩ
Life: ＞5000 Cycles
Operating Temperature: -40ºC~+85ºC
