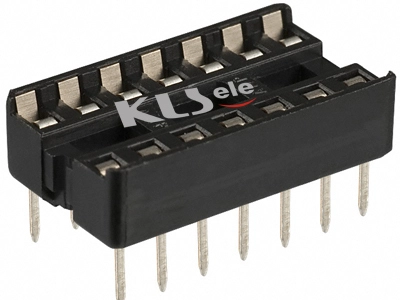

    1.778mm Pitch IC Socket Connector KLS1-216B

    Order Information

    KLS1-216B-XX-1
    XX-No.of 24~64pin
    1: D=10.16mm  2: D=15.24mm 3: D=19.05mm


    Material:

    Housing: 30% Glass filled PBT UL94V-0
    Contacts: Phosphor Bronze
    Plating: Tin plated: 100u" over 50u" nickel

    Electrical Characteristics:

    Current Rating: 1 AMP
    Insulator Resistance: 5000M Ohm min. at DC 500V
    Contact Resistance: 20mΩmax. at DC 100mA
    Operating Temperature: -45ºC~+105ºC
