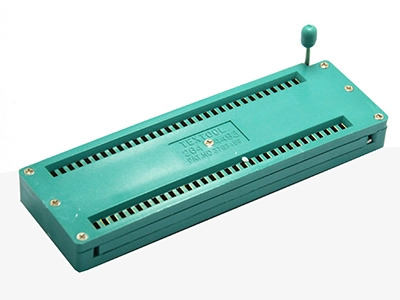

KLS1-108X 2.54mm Pitch ZIF Socket Connector
KLS1-108X 2.54mm Pitch ZIF Socket Connector
Materials：
Compact mechanical construction to ensure long term life.
Zero insertion and extraction pressure.
standard 0.100(2.54mm) IC pitch, easy to mount in PC board.
All plastics are UL 94v-0 grade fire retardant.
Gold plated or Tin Plated contact to ensure low contact resistance and
long operation life.
Electrical Specifications：
Contact Rating:50V DC,100mA.
Contact Resistance: 50mΩ max.
Insulation Resistance: 100M Min.
Dielectric strength: 500V DC min. for 60 seconds.
Mechanical and Enveronmental Specifications：
Operating Temperature: -40℃ to +105℃
Storage Temperature: -20℃ to +70℃
Operating Life:25,000 cycles
Humidity:95%RH,40℃ for 96 Hrs.
Vibration: Per MIL-STD-202F, METHOD 201A
Solderability: After flux 230℃ for 5 0 .5 Seconds,95% coverage
Soldering Heat:260 5 ℃ for 5 1 S econds
