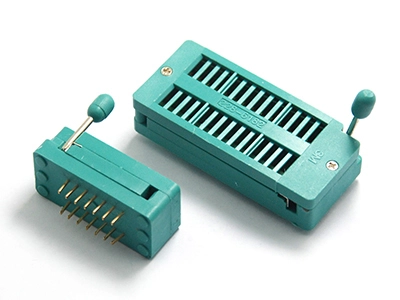

KLS1-108 2.54mm Pitch ZIF Socket Connector
KLS1-108 2.54mm Pitch ZIF Socket Connector
Materials
1.Insulator: thermoplastic.
2.Contact: copper alloy.
Specifications
1.switch function: Single pole Single throw
2.contact rating: 100mA at 50V DC
3.insulation resistance:1000MΩ min@500V DC
4.contact resistance:50mΩ max
5.operating life:100,00 cycles
6.stop strength: place the switch such that vertical,a static load of 3kgf shall
be applied in the direction of stem, operation for a period of 15 seconds.
7.operation temperature range: -40ºC ~ 105ºC
8.storage temperature range: MIL-STD-202F method 201A
9.shock test: to MIL-STD-202F. method 213B,conditionA.
10.wave soldering: recommended solder temperature at 500°F(260ºC )max.
5 seconds, subject to PCB 1.6mm thickness.
11.hand soldering: use a soldering iron of 30 watts, controlled at 608°F (320ºC )
approximately 2 seconds while applying solder.
