KLS1-204SD Single Row 2.54mm Dip Plug IDC Connector
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-204SD
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

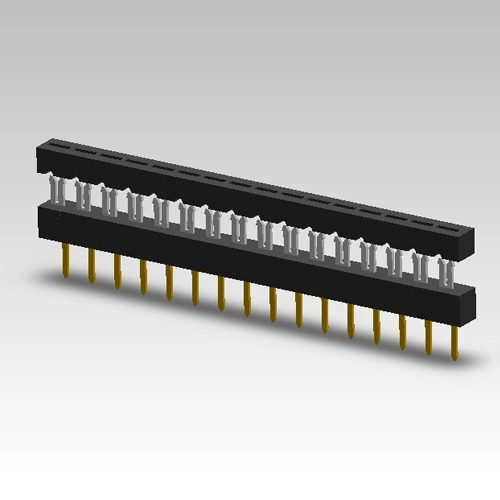

2.54mm Single Row Dip Plug IDC Connector KLS1-204SD
Order Information:
KLS1-204SD-XX-B
XX-No.of 06~30pin
B-Black
SPECIFICATIONS
Material Insulator : PBT, glass reinforced, rated UL 94V-0
Contact : Phosphor Bronze Electrical
Current Rating : 1 Amp
Contact Resistance : 30 mΩ max.
Insulation Resistance : 3000 MΩ min.
Dielectric Withstanding Voltage : 500V AC for 1minute
Operating Temperature : -40˚C to +105˚C
SIZE:
