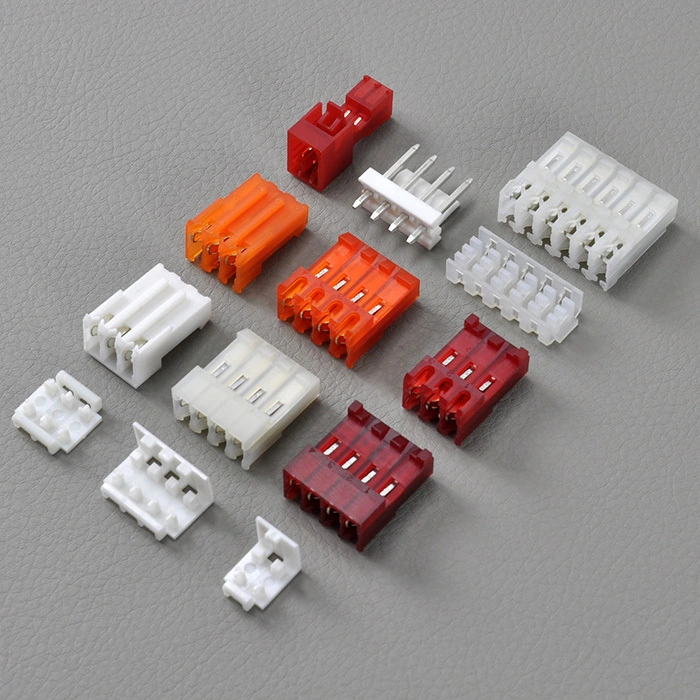

3.96mm AMP Type IDC Connector
Electrical Specification:
Rated Voltage: 250V AC.DC
Rated Current: 7A
Contact Resistance: 10mΩ max
Insulation Resistance: 1000MΩ min
Withstand voltage: 1500V AC/MIN
Temperature range for usage : -40ºC~+105ºC
Material:
Housing: PA66 UL94V-2
Contacts: Phosphor bronze
Plating: Tin 50u" over 100u" nickel
