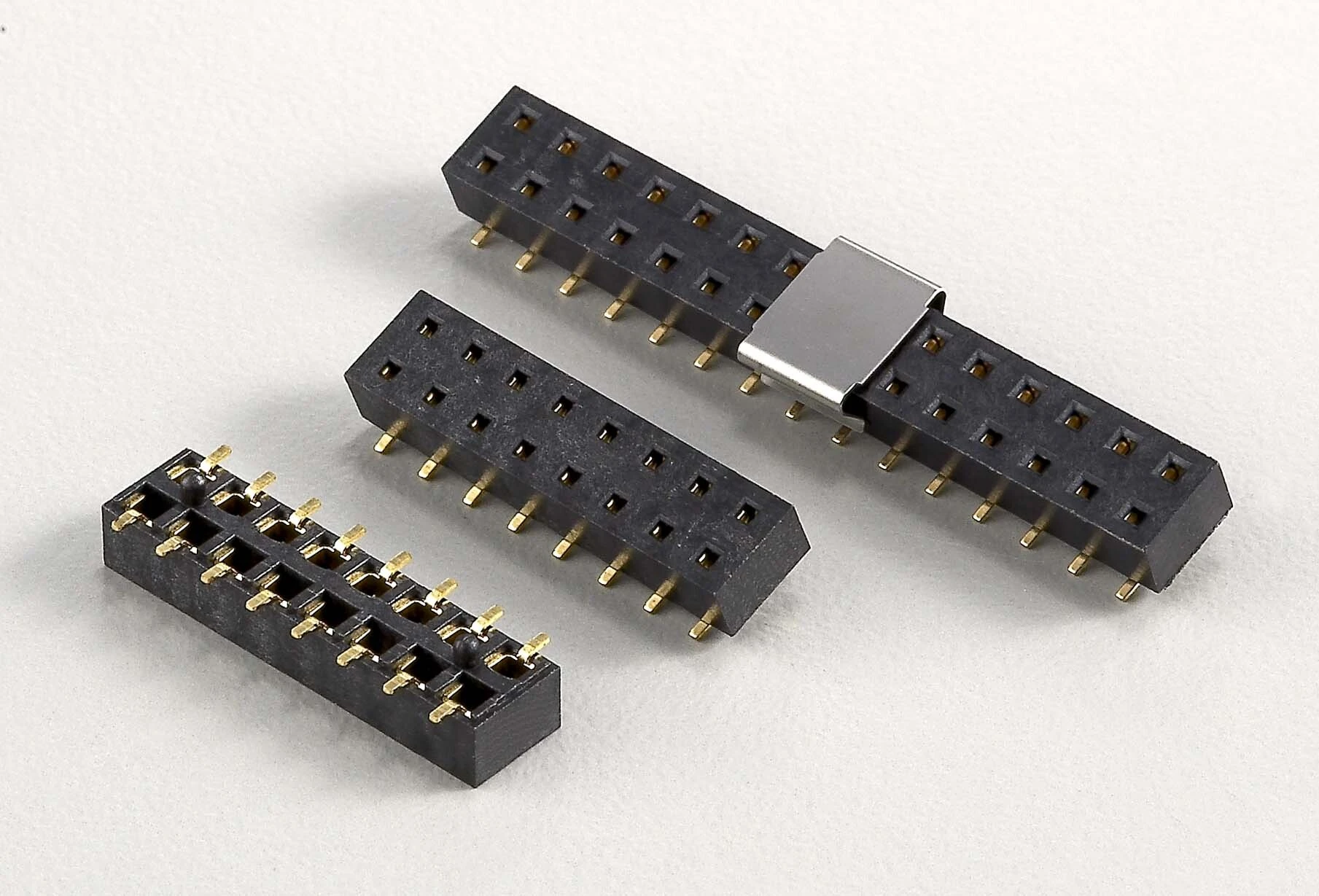

KLS1-208-3.5 2.54mm Pitch High 3.5mm Female Header Connector
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-208-3.5
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-208-3.5 2.54mm Pitch High 3.5mm Female Header Connector
Order Information
KLS1-208-3.5-1-XX-S
Height: 3.5mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Electrical Characteristics:
Current Rating: 3 Amps
Withstanding Voltage: AC 1000V
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -45ºC~+105ºC
Material:
Insulator Material: Polyester (UL94V-0)
Standard: PBT
Contact Material: Brass
Contact Plating: Flash gold
