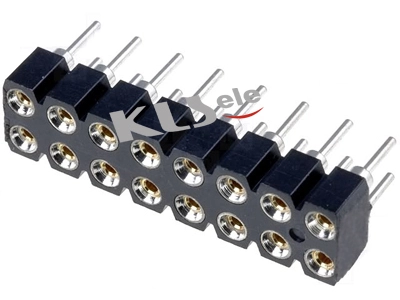

KLS1-209 2.54mm Pitch SIP IC Swiss Socket Connector
Order Information
KLS1-209-1-XX-S
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)
S-Straight Pin R-Right Angle Pin
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Phosphor Bronze or Brass
Plating: Gold plated: 2u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1 AMP
Insulator Resistance: 1000M Ohm min. at DC 500V
Contact Resistance: 20m Ohm max. at DC 100mA
Operating Temperature: -45ºC~+105ºC
