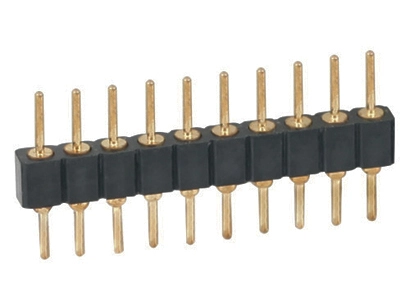

    KLS1-209XC Pitch 1.27mm ic swiss pin header dip 180


    Material:
    Pin:Brass,machined CuZn38Pb2
    Tin plated:2um/80u"Ni,5um/200u"Sn
    Gold Plated:2um/80u"Ni,Full gold
    Insulator:Black(PA46) UL94V-0
    Electrical:
    Current Rating:1Amps/contact max.
    Contact Resistance:≦4mOhm/contact
    Insulator Resistance:≧1000MOhm at DC 500V
    Dielectric Withstanding Voltage:1000V AC Min
    Operaing voltage:60VAD/DC
    Operating Temperature: -45ºC~+105ºC
