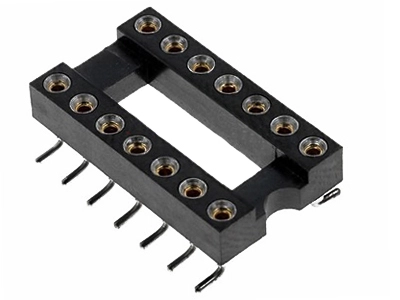

    KLS1-217T 2.54mm Pitch SMT IC Swiss Socket Connector

    Order Information
    KLS1-217T-XX-Z-3
    XX-No.of 06~48pin
    Y-Imported material   Z-Domestic material
    1:B=7.62mm   2:B=10.16mm   3:B=15.24mm

    Material:
    Housing: PBT UL94V~0
    Contacts:PinBrass,TinPlated
    Contacts:Clip- Beryllium copper,Gold Plated
    Electrical Characteristics:
    Current Rating: 1 AMP
    Insulator Resistance: 1000M Ohm min. at DC 500V
    Contact Resistance: 20m Ohm max. at DC 100mA
    Operating Temperature: -45ºC~+105ºC
