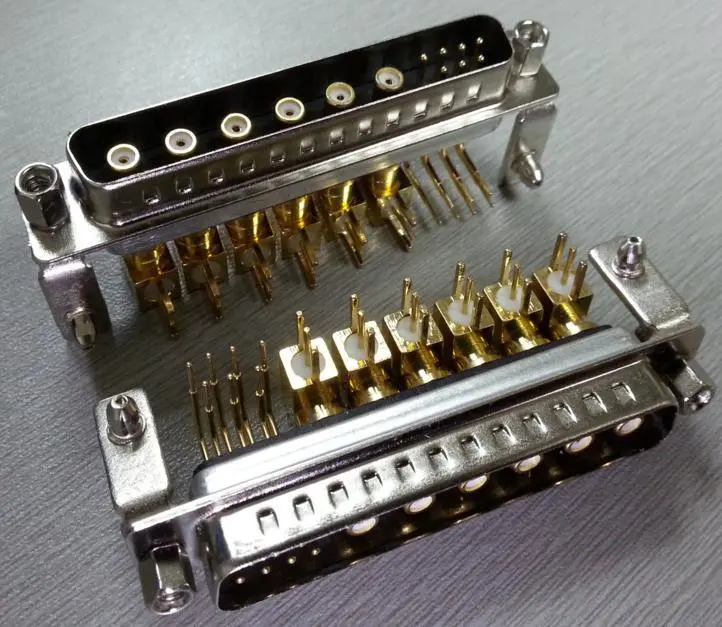

    KLS1-BIG10D-13W6 13W6 High current D-SUB RF Type Female & Male

    13W6 High current D-SUB RF Type Female & Male

    Order Information
    KLS1-BIG10D-13W6-F-40A-1U
    BIG10D-RF type
    13W6-No.of pin
    M-Male    F-Female
    40A-
    Current Rating 40A & 10A 20A 30A
    1U-Contact plating Gold 1u" & 3U-3u"

    Material:
    Housing: 30% Glass filled PBT UL94V-0
    Contacts: Copper alloy
    Contact plating: Gold 1u" or 3u"
    Shell: Steel, 100u" Tin Over 50u" min Nickel
    Clinch Nut: Brass, 100u" min Nickel Plated

    Electrical Characteristics:
    Voltage Rating: 300V
    Current Rating: 10A 20A 30A 40A

    Insulator Resistance: 2000M ohms min
    Contact Resistance: 10m ohms max
    Durability: 500 cycles
    Operating Temperature: -55ºC~+105ºC
