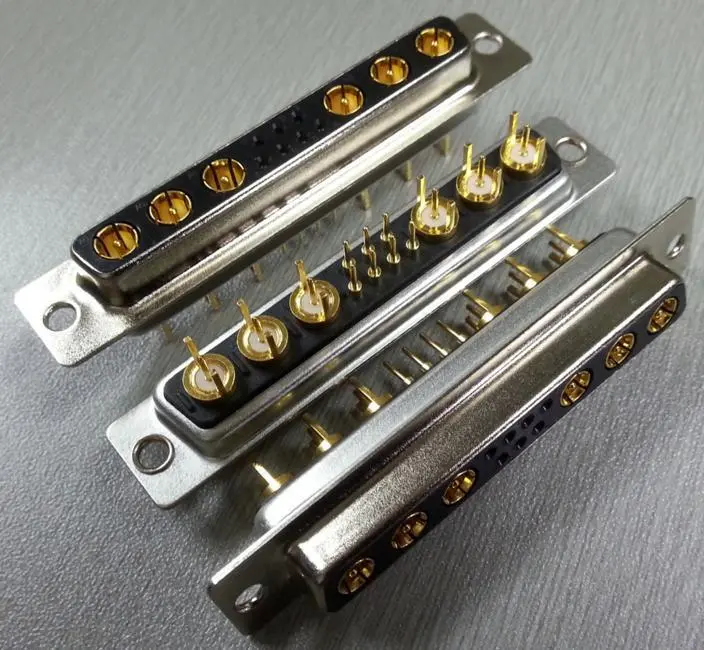

KLS1-BIG10F-13W6 13W6 High current D-SUB RF Type Female & Male
13W6 High current D-SUB RF Type Female & Male
Order Information
KLS1-BIG10F-13W6-F-40A-1U
BIG10F-RF type
13W6-No.of pin
M-Male F-Female
40A-Current Rating 40A & 10A 20A 30A
1U-Contact plating Gold 1u" & 3U-3u"
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Copper alloy
Contact plating: Gold 1u" or 3u"
Shell: Steel, 100u" Tin Over 50u" min Nickel
Clinch Nut: Brass, 100u" min Nickel Plated
Electrical Characteristics:
Voltage Rating: 300V
Current Rating: 10A 20A 30A 40A
Insulator Resistance: 2000M ohms min
Contact Resistance: 10m ohms max
Durability: 500 cycles
Operating Temperature: -55ºC~+105ºC
