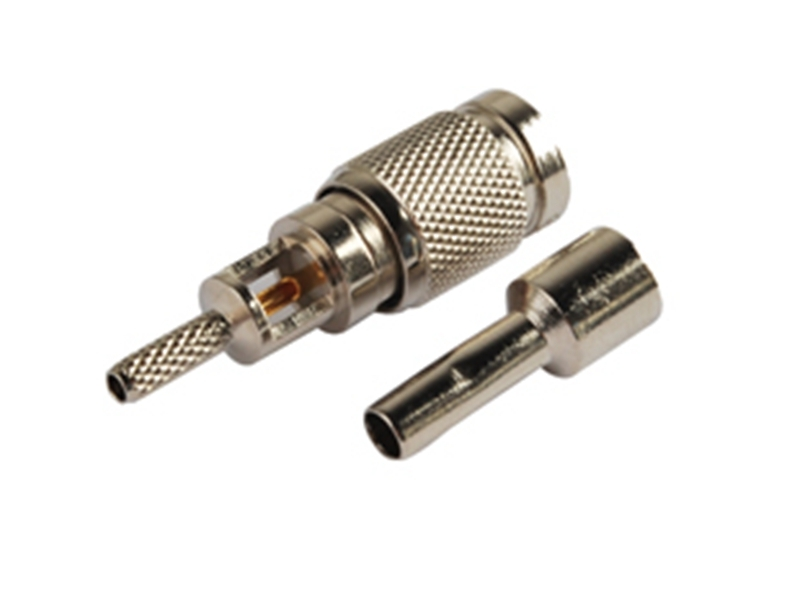

    KLS1-CC4001 1.0/2.3 (CC4)Connector for RG178

    1- Center Contact: Brass,Gold-plated
    2- Body-diecast:   Brass,Nickel-plated
    3- Insulation: PTFE
    4- Electrical

        Impedance: 75 Ω
        Frequency Range:0~10 GHz Max.
        Voltage Rating: 250 volts
        Withstand Voltage:750V
        Insulation Resistance 10000 MΩ
        V.S.W.R:<1.3
        Contact resistance:
          Centre contact: 10 mΩ
          Outer contact:  3  mΩ
    6-Mechanical
       Mating: Slide-On Push-Pull Threaded
    7-Temp.range   -40°C~85°C

    Cable Type: RG178
