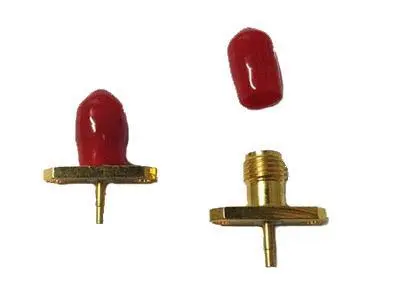

KLS1-SMA-KFD SMA Connectors
Material:
Connector body:Brass per QQ-B-626 ,gold Plating or nickel
Center contact Male:Brass,gold Plating
Center contact Female:Beryllium copper,gold Plating
Electrical Specifications:
Impedance:50 Ω
Frequency Range:DC~12.4GHz
Voltage Rating:335 volts rms.
Dielectric Withstanding Voltage:1000V rms
VSWR :≤1.10+0.002f for Straight connector typical;
≤1.20+0.003f for Right angle connector typical
Contact Resistance Center contact: ≤3 mΩ;Body:≤2 mΩ
Insulation Resistance:≥5000 MΩ
Temperature Range: - 65°C to +165°C
