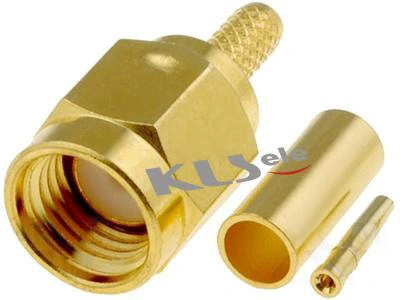

KLS1-SMA014 SMA Cable Connector (Plug,Female,50Ω)
SMA Cable Connector With Plug Female Straight Type (Cable Group: RG-316,RG-174,RG-188 Or Other) Electrical Specifications: Impedance: 50 Ω Frequency Range Semi-rigid cable: 0-18 GHz Flexible cables: 0-12.4 GHz Voltage Rating : 335 volts rms. Dielectric Withstanding Voltage : 500 volts rms. VSWR : 1.15 +0 .02 f (GHz) for Straight connector typical 1.25 +0 .025 f (GHz) for Right angle connector typical Contact Resistance Center contact: 2.0 mΩ Body: 2.0 mΩ Insulation Resistance: 5,000 MΩ Mechanical Specifications: Mating:1/4"-36 UNS thread coupling Cable retention:6kgf typical Durability:500Cycles Min. Coupling nut retention:18kgf Min. Temperature Range: - 55°C to +155°C Material: Connector body: Brass per QQ-B-626 ,gold Plating or nickel Center contact Male: Brass,gold Plating Center contact Female: Beryllium copper,gold Plating Insulator: PTFE Gasket:Silicone rubber Crimp Ferrule:Annealed copper |
