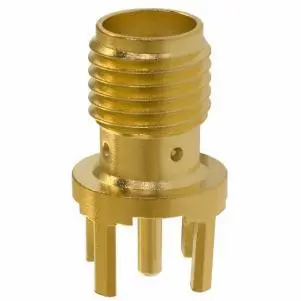

KLS1-SMA023 PCB Mount SMA Connector (Jack,Female,50Ω)
PCB Mount SMA Connector With Jack Female Straight Type Electrical Specifications: Impedance: 50 Ω Frequency Range Max: 18 GHz Voltage Rating : 335 volts rms. Dielectric Withstanding Voltage : 500 volts rms. VSWR : 1.15 +0 .02 f (GHz) for Straight connector typical 1.25 +0 .025 f (GHz) for Right angle connector typical Contact Resistance Center contact: 2.0 mΩ Body: 2.0 mΩ Insulation Resistance: 5,000 MΩ Mechanical Specifications: Mating:1/4"-36 UNS thread coupling Cable retention:6kgf typical Durability:500Cycles Min. Coupling nut retention:18kgf Min. Temperature Range: - 55°C to +155°C Material: Connector body: Brass per QQ-B-626 ,gold Plating or nickel Center contact Male: Brass,gold Plating Center contact Female: Beryllium copper,gold Plating Insulator: PTFE Gasket:Silicone rubber Crimp Ferrule:Annealed copper |
