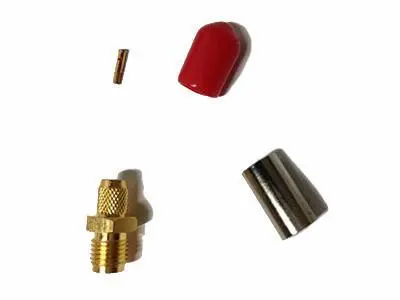

KLS1-SMA033 Panel Mount SMA Connector (Jack,Female,50Ω)
Electrical Specifications:
Impedance: 50 Ω
Voltage Rating : 335 volts rms.
Dielectric Withstanding Voltage : 500 volts rms.
Contact Resistance Center contact: 2.0 mΩ
Insulation Resistance: 5,000 MΩ
Mechanical Specifications:
Mating:1/4"-36 UNS thread coupling
Durability:500Cycles Min.
Temperature Range: - 55°C to +155°C
Material:
Connector body: Brass per QQ-B-626 ,gold Plating or nickel
Center contact : Brass,gold Plating
