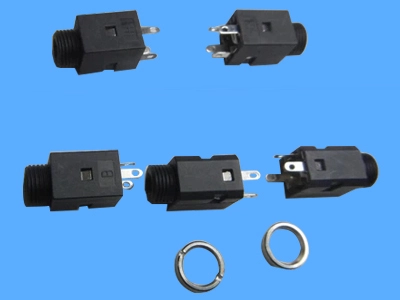

    KLS1-TG3.5-004   3.5mm Audio Jack

    Technical parameters:
    Rated voltage:DC 30V
    Rated current: 0.5A
    Contact resistance:0.03Ω max
    Insulation resistance:100MΩ (DC250V)
    Withstand Voltage:500VAC
    Insertion Force :3-20N
    Life:5000 times

    Material:
    1、Housing:PBT
    2、Contact Foot:Phosphor bronze, Ag-Plating
    3、Spring Piece:Phosphor bronze, Ag-Plating
    4、Curve Piece:Brass, Ag-Plating
    5、Contact Foot:Phosphor bronze, Ag-Plating
    6、CAP:H59 Brass, Ni-Plating
