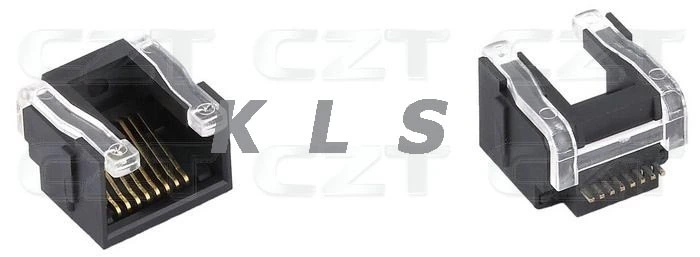

KLS12-SMT05-8P SMT Modular Jack RJ45

Place of Origin:

China

Payment:

L/C, D/A, D/P, T/T

MOQ:

1000 PCS

Model:

KLS12-SMT05-8P

Delivery Time:

10 days

Inquiry

Write a Review

KLS12-SMT05-8P SMT Modular Jack RJ45

MATERIAL:
1.HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0ABS、 PBT、 NYLON
2.HOUSING COLOR : BLACK、GRAY、IVORY、WHITE OR OTHERS
3.CONTACT MATERIAL : PHOSPHOR BRONZE φ0.46mm
4.PLATING : GOLD PLATING OVER NICKEL.GOLD PLATINGTHICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u"
5.SHIELD : 0.23 THICKNESS BRASS WITH NICKEL PLATED

ELECTRICAL
1.VOLTAGE RATING: 125 VAC RMS.
2.CURRENT RATING : 1.5 AMP
3.CONTACT RESISTANCE : 30 MILLIOHMS MAX.
4.INSULATION RESISTANCE : 500 MEGOHMS MIN ＠500 VDC
5.DIELECTRIC WITHSTANDING RESISTANCE : 1000 VAC RMS. 50Hz 1 MINUTE

MECHANICAL
1.DURABILITY : 750 CYCLES MIN
2.PCB RETENTION PRE-SOLDER : 1 LB MIN

ENVIRONMENTAL
1. STORAGE :-40℃~80℃
