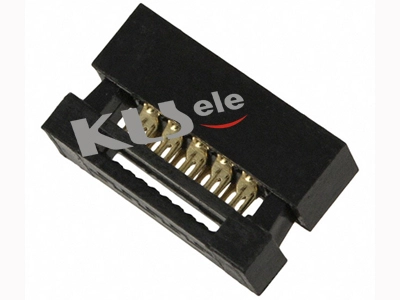

KLS1-204C Pitch 1.27mm IDC Socket Connector
5.0
Place of Origin:
china
Payment:
L/C, D/A, D/P, T/T, Western Union
MOQ:
1000 pcs
Model:
KLS1-204C
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1.27x1.27mm Pitch IDC Socket Connector
Order Information:
KLS1-204C-XX-B
XX-No.of 06~80pin
B-Black G-Gray L-Blue
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Phosphor Bronze
Cable: 0.635mm (0.050") pitch flat cable
Electrical Characteristics:
Current Rating: 1 AMP
Insulator Resistance: 1000M Ohm min. at DC 500V
Contact Resistance: 30m Ohm max. at DC 100mA
Operating Temperature: -45ºC~+105ºC
